Flat Roof
Select this for a flat or nearly flat roof finished with a continuous membrane such as EPDM, bitumen, or PVC.
Sale
Sale
Standard Garage Fan w Ducting & Remote
$1,842.68
$1,637.94
Choosing Your Roof Tile Type
Choose the option that matches the shape of the tiles or slate at the planned installation point.
High Profile Tile
Select this for pantiles, S-shaped tiles, or other raised and wavy clay or concrete tiles with noticeable ridges and troughs.
Flat Tile or Slate
Select this for flat interlocking tiles, plain tiles, or natural slate that creates a relatively even roof surface.
Standard Garage Fan · Ducting and remote included
Fresh air for your everyday garage workspace.
Make your garage a more comfortable place for weekend projects, tool storage, and everyday work. The Solatube Standard Garage Fan draws warm air through a ceiling grille and insulated duct into the attic, where properly sized vents release it outdoors.
An EC brushless motor and seven speeds let you adjust airflow with the included Comfort Control remote.
- 1,400 maximum CFM
- Seven variable speeds
- 7-foot insulated duct
Plan before ordering: Listed for garages up to 600 sq. ft., with 2 sq. ft. of net-free attic ventilation required. Confirm intake openings, ceiling and attic space, power, and the garage's fire-separation requirements.
Ventilate your workspace
Move trapped heat out of the garage
Bring outdoor air through suitable intake openings while the fan removes accumulated warm air.
Adjustable airflow
Choose from seven speeds to suit the ventilation needed while you work.
Reduced vibration
HushMount™ 2 and insulated ducting help isolate the motor assembly from the ceiling.
Ventilate while you work
Use the Comfort Control remote to set airflow and a run period for your time in the garage.
The fan exchanges air; it does not refrigerate or dehumidify it. Cooling depends on outdoor conditions. Use it for general ventilation, not hazardous vapors or vehicle exhaust.

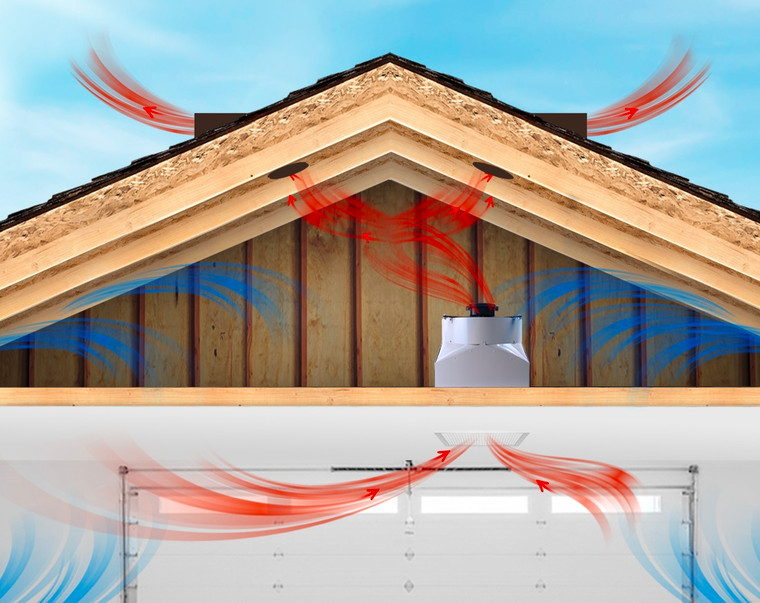

Plan the whole airflow path
Fresh air in. Warm air out.

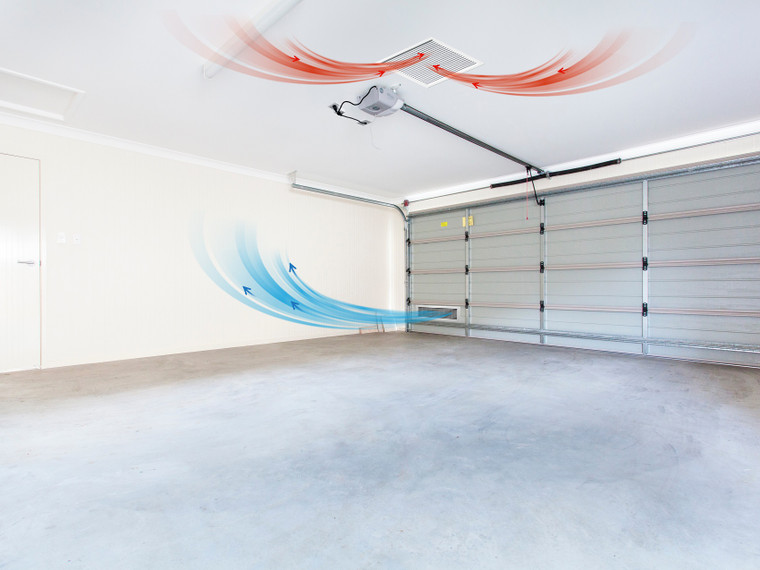

- Outdoor air enters. Suitable exterior intake openings supply replacement air to the garage.
- The fan moves garage air upward. Air passes through the ceiling grille and insulated duct to the fan in the attic.
- Attic vents release it outdoors. Adequate attic ventilation completes the exhaust path.
Intake and exhaust openings work together with the fan. A closed garage without an air inlet or a restricted attic exhaust path will limit ventilation.
Comfort Control remote
Choose the airflow that suits the moment
Seven speeds
Adjust ventilation from a lower setting to stronger airflow as conditions change.
Timer operation
Select a run period using the supplied remote. Follow the model-specific controller instructions for setup and operation.
Fit and performance
Check capacity and the installation space
Leave room for the fan, duct, mounting system, and damper box above the ceiling. Confirm the opening and clearances using the correct installation instructions.
| Maximum airflow | 1,400 CFM |
|---|---|
| HVI 916 airflow at 0.1 in. w.g. | 1,157 CFM |
| Suggested garage size | Up to 600 sq. ft. |
| Fan / duct diameter | 14 in. / 14 in. |
| Duct length | 7 ft. |
| Power at 120V | 70–185 watts |
| Sound, low / high | 40 / 48 dB |
| Intake grille | 15.5 × 21.5 in. |
| Attic ventilation required | 2 sq. ft. net-free area |
Maximum airflow and airflow measured against resistance are different ratings. Grille dimensions are not ceiling cutout dimensions. Garage size is a starting point; layout, ceiling height, intake area, and attic ventilation affect selection.
Ducted garage system

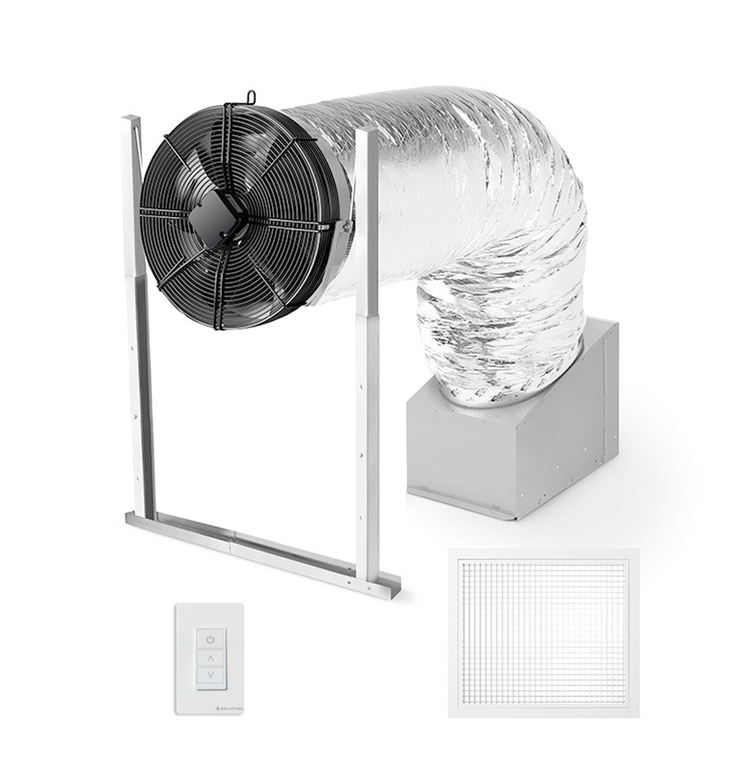

What's included
- EC brushless fan assembly with Soft Start and Jet Blade design
- 7-foot insulated duct, 14 inches in diameter
- R6-insulated damper doors with the garage fire-damper configuration, and ceiling grille
- Comfort Control remote with batteries
- HushMount™ 2 system and mounting hardware
Exterior intake louvers are separate purchases. Confirm any additional framing, electrical, duct-support, and sealing materials with your installer.
Plan a complete airflow path
Confirm the ceiling, duct route, and exhaust ventilation
This garage setup uses the shared ducted fan installation approach. Have your installer check the available attic space, duct routing, exterior intake area, and attic vents together. Confirm the vertical clearance and ceiling opening for the supplied fan assembly before cutting or mounting.
Fire-sensing damper doors: The garage configuration includes spring-loaded doors designed to close in response to heat. Keep the fire-damper assembly installed and functioning as instructed. R6 describes the insulation rating; it is not a fire-resistance rating.
Installation must meet local requirements, including garage fire separation. Electrical connections must be made by a licensed electrician. Follow the shared fan guide together with the garage-specific fire-damper requirements supplied with the kit.
