All Solatube Skylights
Bring the outside light in
Your favorite room could be the one that needs more daylight.
The kitchen where you switch on the lights at breakfast. The hallway that stays dim at midday. The bathroom with no outside window. Natural daylight can change how those spaces feel—and how much you enjoy spending time in them.
Solatube tubular skylights collect daylight at the roof, guide it through reflective tubing and distribute it through a ceiling fixture. Start with the room you want to brighten, then choose the system size and kit configuration that suit your home.
01 / Start with your room
Two tube sizes. A brighter fit for your space.
Think about where you want the daylight to land: along a hallway, over the kitchen workspace, or through a larger living area. Room size is a starting point; ceiling height, layout and the route to the roof also influence the result.

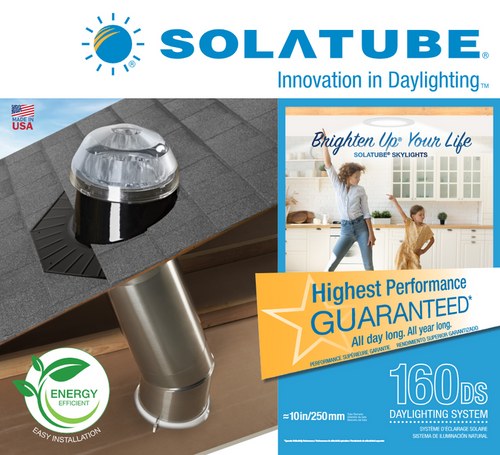

Solatube 160 DS
A compact choice for bathrooms, laundry rooms, closets and hallways. Start here when you want to introduce daylight into a smaller space.

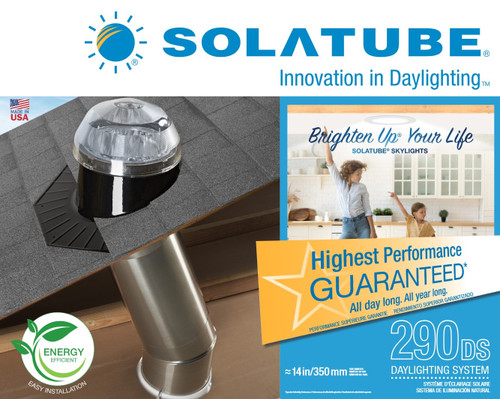

Explore the 10-inch kit →Solatube 290 DS
A larger choice for kitchens, family rooms, spacious bathrooms and garages. Consider this size for larger rooms and higher ceilings.
Explore the 14-inch kit →| Detail | 160 DS | 290 DS |
|---|---|---|
| Tube diameter | 10 in. / 250 mm | 14 in. / 350 mm |
| Published coverage guidance* | Up to 150 sq. ft. | 150–300 sq. ft. |
| Ceiling fixture | Round | Round |
| Roof flashing | Included; select the appropriate option | Included; select the appropriate option |
| Installation hardware | Included | Included |
| Additional 20-inch extension tubes | Not included in the standard kit | Not included in the standard kit |
| Solar-powered NightLight | Not included in the standard kit | Not included in the standard kit |
*Coverage is a planning guide, not a guaranteed lighting level. Sunlight, shading, tube length, bends, ceiling height and room finishes affect the amount and distribution of daylight. Large or divided spaces may benefit from more than one system.
02 / Choose your configuration
What changes from one kit to another?
Once you have a tube size in mind, choose the features that fit your room and installation. Fixture shape, additional tubing and nighttime lighting each serve a different purpose.

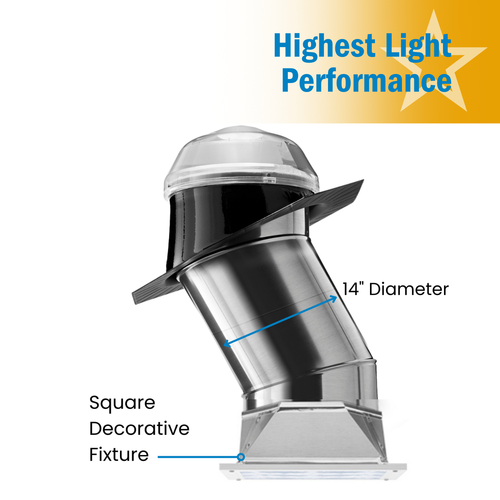

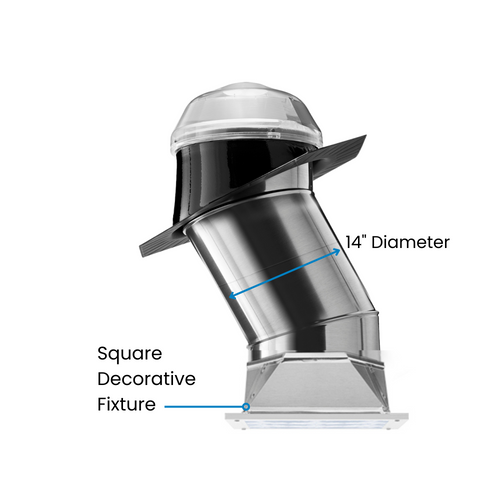

Square ceiling fixture
Prefer straight lines at the ceiling? Square-fixture kits offer a different interior finish in both 10-inch and 14-inch system sizes. Choose the tube size for the room, then the fixture style you like.

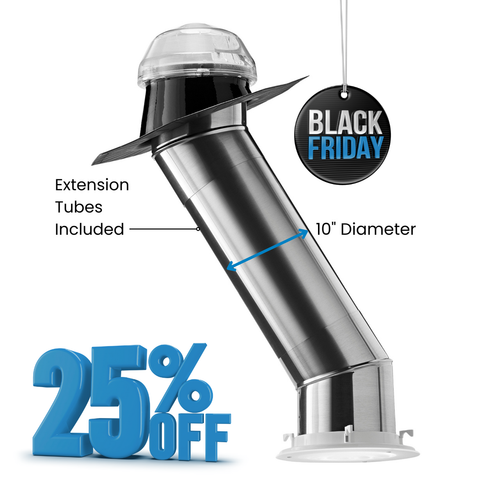

View a square-fixture kit →Extension-tube bundles
These bundles include two 20-inch extension tubes for installations needing more reach between roof and ceiling. Measure the planned route before choosing your bundle; tube overlaps affect the assembled length.

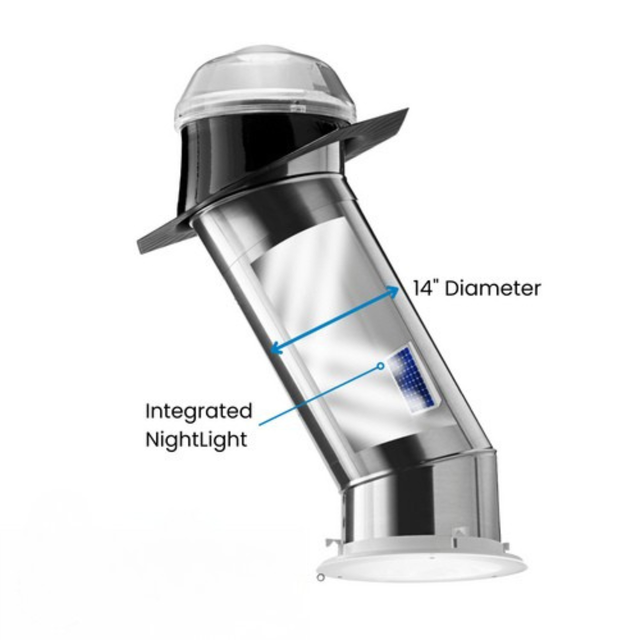

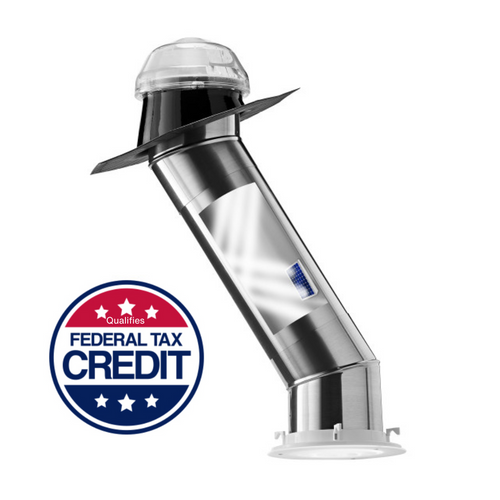

View an extension-tube kit →Integrated NightLight
Enjoy a gentle glow after sunset. The solar-powered NightLight charges during the day and provides soft illumination at night—useful for a hallway or bathroom. It provides ambient light rather than full task lighting.

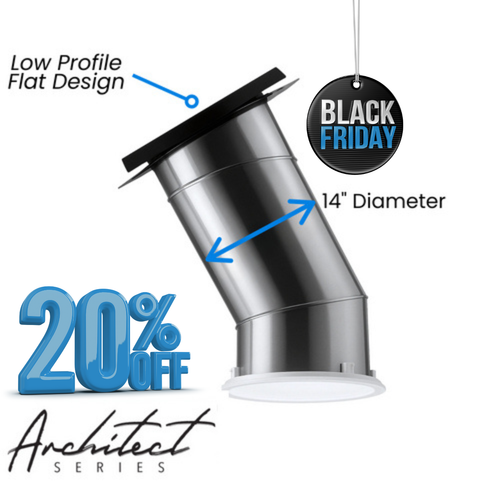

View a NightLight kit →Low Profile
Explore the 14-inch Low-Profile configuration when the appearance of the rooftop collector is part of your design decision. Confirm the complete roof configuration for your installation.

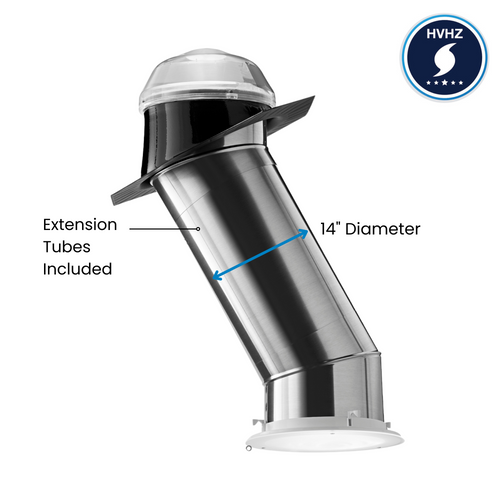

View the Low-Profile kit →Hurricane-zone kits
HVHZ identifies configurations intended for High Velocity Hurricane Zone applications. If your project requires one, match the specific kit and installation details to the requirements for your location.
Get help with an HVHZ configuration →Controls and accessories
Consider daylight control for a bedroom or media room, or an electric light add-on for illumination after dark. Select accessories for your system size and fixture configuration.

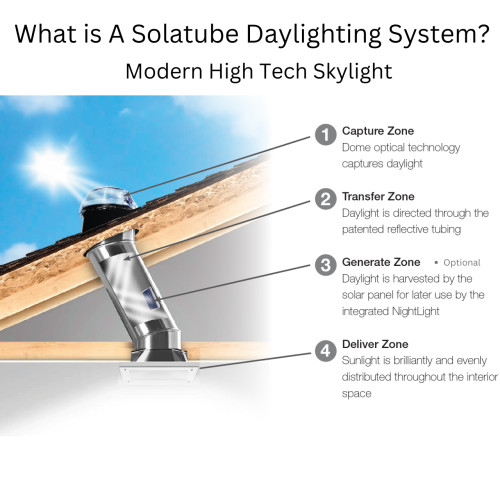

Explore accessories →From rooftop to room
A small opening. A carefully designed light path.
Capture daylight

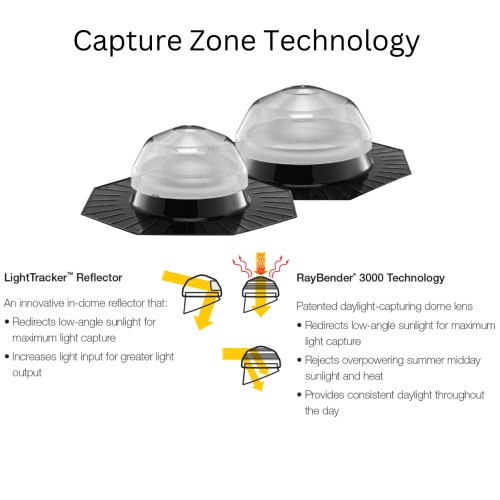

The rooftop collector gathers daylight. On standard dome systems, Raybender technology and the LightTracker reflector help capture sunlight as its angle changes throughout the day.
Guide it indoors
Highly reflective tubing carries the collected light toward the ceiling. Planning a direct route with only the bends needed helps make the most of the available daylight.

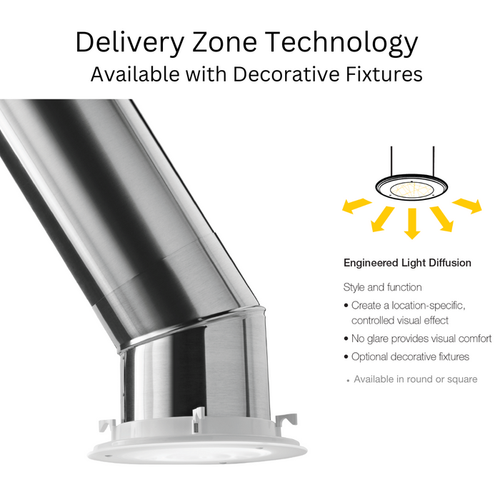

Light the room
The ceiling fixture spreads the arriving daylight into your space. The light changes naturally with the sky outside, bringing a sense of the day into interior rooms.
03 / Connect roof and ceiling
A few measurements make choosing easier.
Start with the ceiling location where daylight will be most useful. Then identify a suitable rooftop position and the route between them. Attic depth and framing help determine how much tubing and which fittings the installation needs.
Roof flashing forms the weatherproof connection around the system. Select it for the roof pitch and covering at the installation point. Tile roofs may require an additional tile-flashing component.
Installation time depends on access, roof construction and the tube route. A straightforward installation and a project with a long or offset run require different planning.
Before you choose
Answers for a brighter start.
How much daylight will I get?
Output varies with the sunlight available, collector position and tube configuration. Room surfaces also influence how bright the space feels. Use the coverage guidance to narrow your choice, then consider your room layout and installation route rather than expecting a fixed light-bulb equivalent.
Can one Solatube skylight brighten several rooms?
Plan each system around the room or area served by its ceiling fixture. Separate enclosed rooms generally need separate systems. In an open space, multiple fixtures can help distribute daylight across different activity areas.
Does a standard kit include extension tubes?
The standard 160 DS and 290 DS kits do not include additional 20-inch extension tubes. Choose an extension bundle or compatible tubing when the installation needs more length. Compare the kit contents with your measured route before ordering.
Will the skylight provide light at night?
Daylighting itself depends on outdoor light. An integrated solar-powered NightLight adds a soft glow after dark. If you want brighter nighttime illumination, explore a compatible electric light add-on for your system.
Can I reduce daylight in a bedroom?
A compatible daylight dimmer lets you control the daylight entering through the system. Include that choice in your planning if the room is used for daytime sleep, television or other activities that benefit from less light.
How do I choose between a round and square fixture?
Choose the system size around the room's lighting needs. Then select the ceiling appearance that suits your interior. A square fixture changes the visible finish; it does not change a 10-inch system into a 14-inch system.
Which room would you brighten first?
Tell us about the space, your roof and the distance to the ceiling. We'll help you choose a system size, kit and accessories that fit your project.
