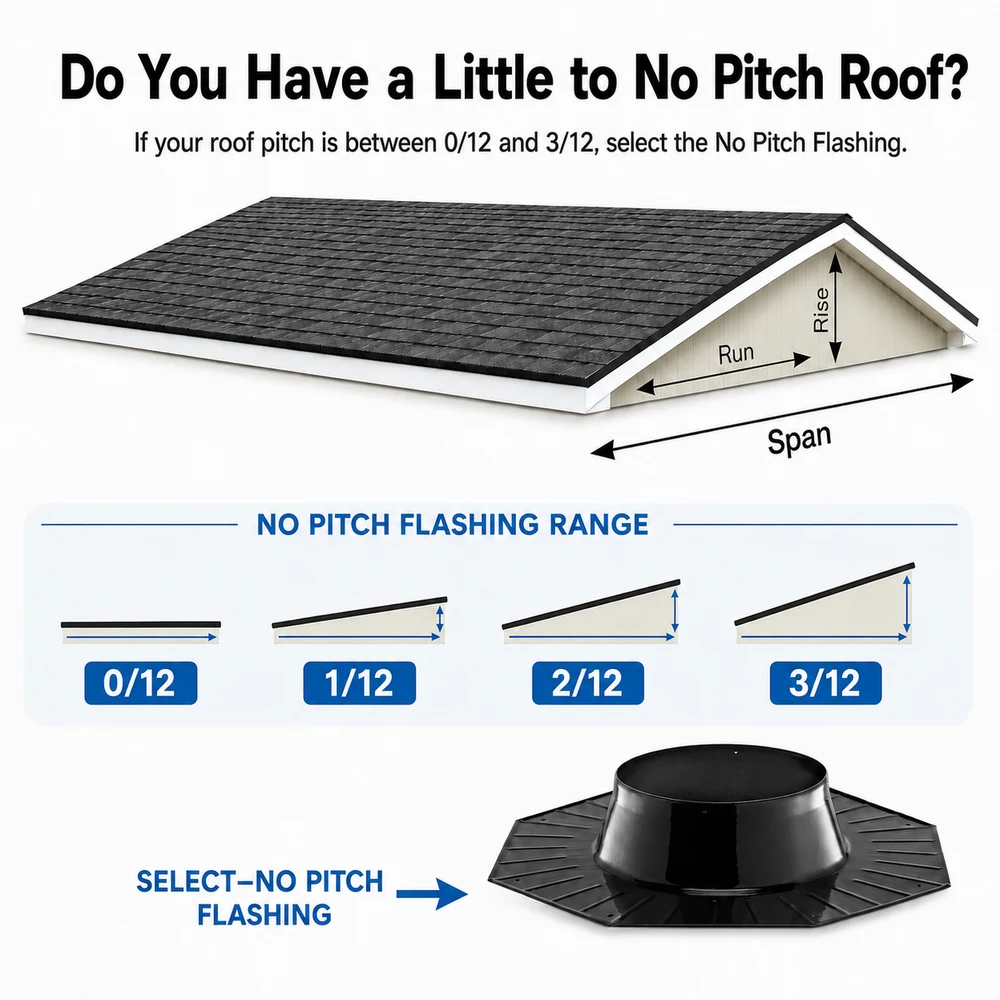

Flat Roof
Select this for a flat or nearly flat roof finished with a continuous membrane such as EPDM, bitumen, or PVC.
Whole House Fan EPS Focus Model, Designed for 100 - 500 sqft Spaces
$410.00
Choosing Your Roof Tile Type
Choose the option that matches the shape of the tiles or slate at the planned installation point.
High Profile Tile
Select this for pantiles, S-shaped tiles, or other raised and wavy clay or concrete tiles with noticeable ridges and troughs.

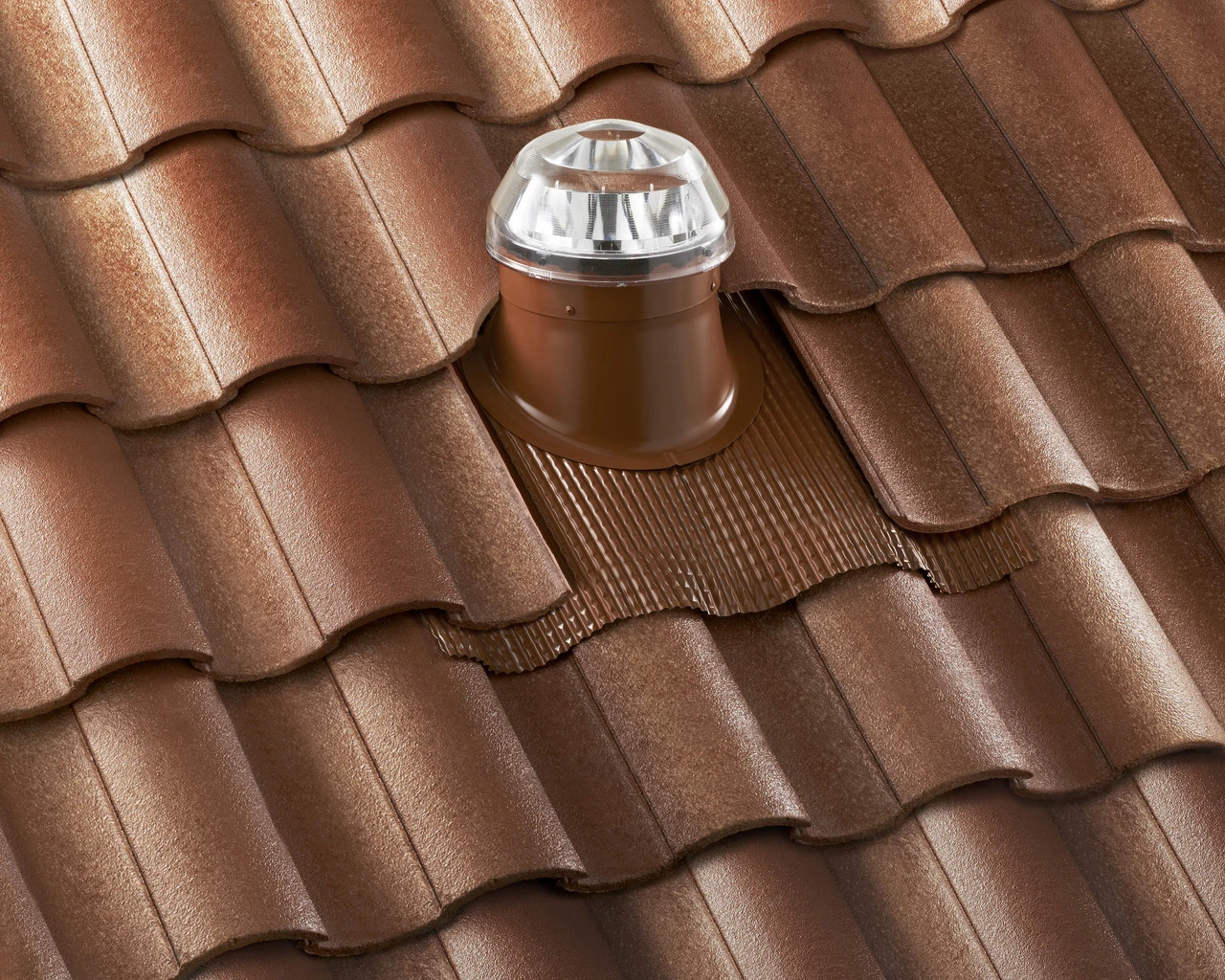

Flat Tile or Slate
Select this for flat interlocking tiles, plain tiles, or natural slate that creates a relatively even roof surface.
EPS Focus · Whole House Fan · Up to 500 sq. ft.
Room-by-room fresh-air ventilation with a compact footprint.

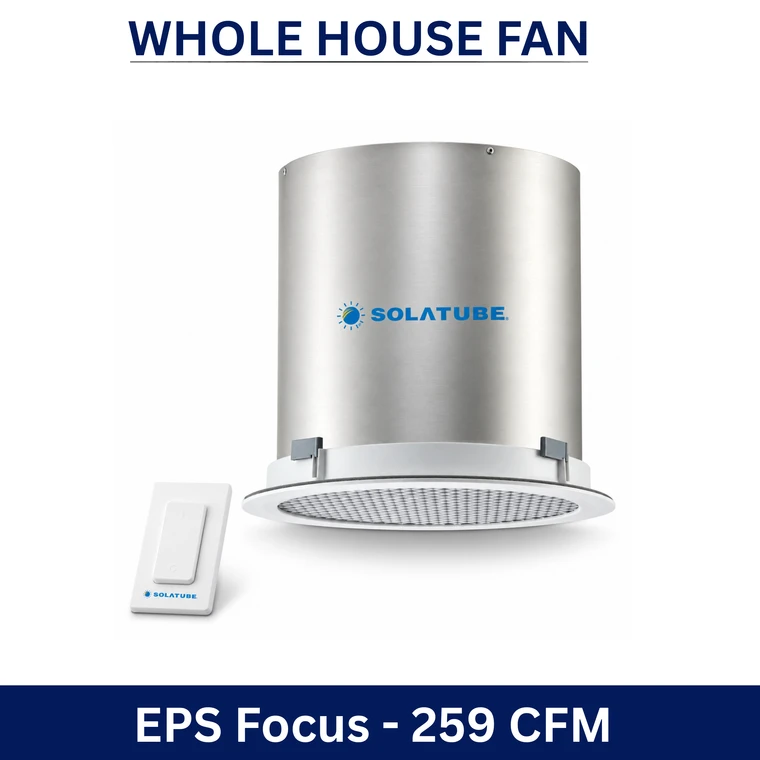

The Solatube EPS Focus is a direct-mount whole house fan for bedrooms, offices, laundry rooms, home gyms, and other spaces up to 500 sq. ft.
Its compact circular design draws cooler outdoor air through an open window, moves warm room air into the attic, and can operate with the room door closed when the room has adequate inlet ventilation.
- 259 maximum CFM
- 30 dB sound level
- One-speed remote included
Plan before ordering: EPS Focus requires approximately 1 sq. ft. of net-free attic ventilation, at least 20 inches of vertical attic clearance, accessible electrical power, and an open window in the room during operation.
Comfort on your terms
Exchange trapped indoor heat for fresh outdoor air
Use one EPS Focus for a problem room or combine multiple units to create a room-by-room ventilation plan tailored to the home.
Room-by-room control
Ventilate a single problem room or install multiple Focus units to build a customized whole-home solution.
Door-closed operation
Maintain privacy while ventilating a room, provided an open window supplies adequate replacement air.
Remote operation
Use the included one-speed remote from its wall mount or remove it and keep it nearby.
Efficient EC motor
The 14-watt brushless motor delivers targeted airflow with low energy use.
Quiet performance
The circular direct-mount design operates at 30 dB, making it suited to bedrooms, offices, and similar spaces.
Clean ceiling finish
The slim, round intake grille has no visible fasteners for a discreet finished appearance.

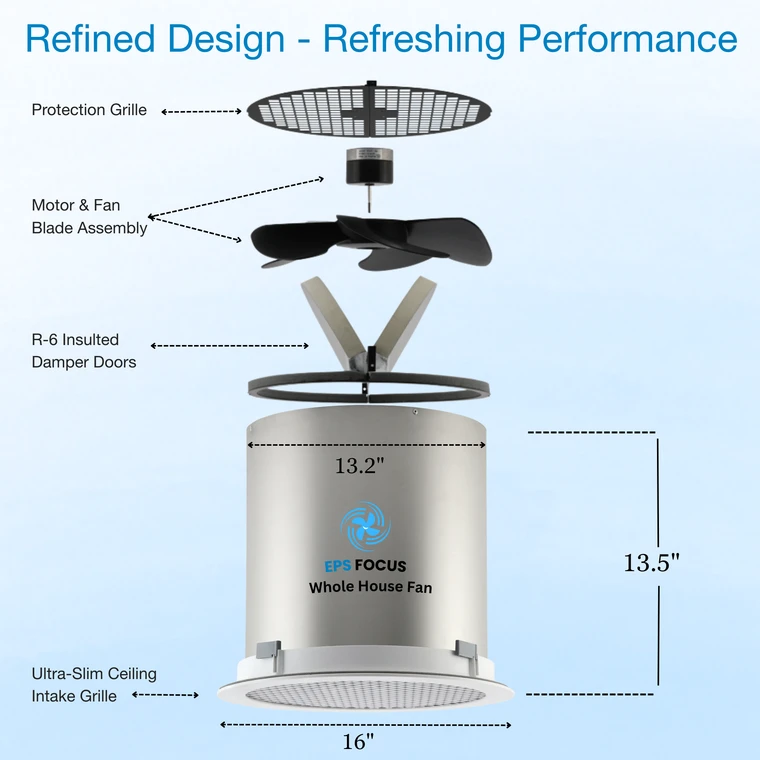

Compact direct-mount design
The fan, damper, and controls in one focused system
- 12-inch fan with EC brushless motor
- Direct-mount design with no duct required
- R6 insulated damper doors
- 16.1-inch round intake grille
- One-speed removable remote control
- Power cord and electrical connections included
Targeted ventilation
How EPS Focus refreshes an individual room
- Open a window in the room. Place the fan away from the window to help create a cross breeze.
- Turn on the fan. The ceiling intake pulls warm room air into the attic as fresh outdoor air enters through the window.
- Exhaust through the attic. The displaced air exits through properly sized attic vents.
EPS Focus can operate with the room door closed, but it still requires an open window and adequate attic exhaust ventilation. It does not refrigerate or dehumidify the air like an air conditioner.
Choose the right capacity

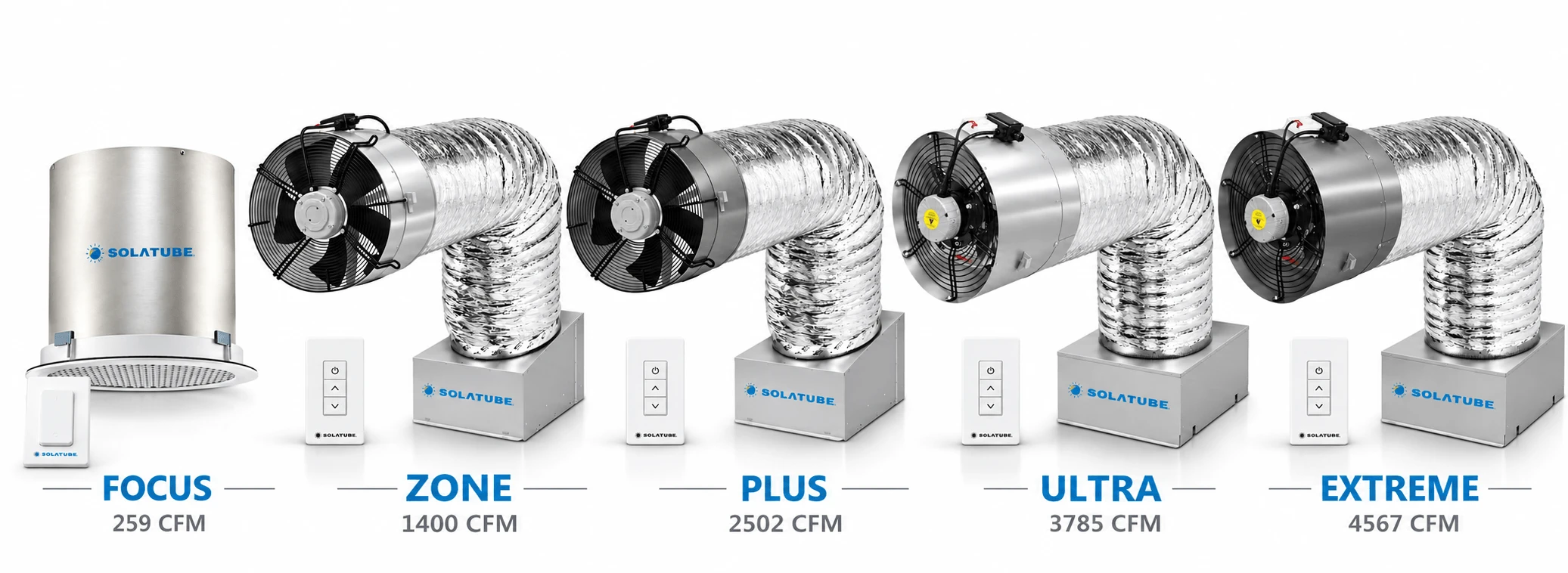

Compare Engineered Performance Series models
Select a fan using the home's size, required airflow, available attic space, and net-free attic ventilation.
| Model | Suggested home size | Maximum airflow | Attic venting required | Sound, low/high |
|---|---|---|---|---|
| EPS Focus Current model | 0–500 sq. ft. | 259 CFM | 1 sq. ft. | 30 dB |
| EPS Zone | 500–1,200 sq. ft. | 1,400 CFM | 2 sq. ft. | 40/48 dB |
| EPS Plus | 1,000–2,200 sq. ft. | 2,502 CFM | 4 sq. ft. | 44/58 dB |
| EPS Ultra | 2,000–3,200 sq. ft. | 3,785 CFM | 6 sq. ft. | 50/58 dB |
| EPS Extreme | 3,000+ sq. ft. | 4,567 CFM | 8 sq. ft. | 58/64 dB |
Home size is a starting point. Confirm the fan capacity, attic venting, attic clearances, climate, and local requirements for the specific installation.
EPS Focus system
What's in the box
The compact EPS Focus system includes the direct-mount fan, controls, power connection, and ceiling-finish components needed for installation.
- EPS Focus fan assembly with EC brushless motor
- Fan blade assembly
- R6 insulated damper doors
- Round ceiling grille with no visible fasteners
- One-speed remote control
- Power cord and electrical connections
- Mounting hardware and installation kit
- Installation instructions
Optional accessory: a 30-foot extension cable is sold separately when the included power connection cannot reach an accessible attic outlet.
Plan the installation
Confirm attic space, ventilation, and electrical access
Before installation, confirm that the attic can accommodate the direct-mount fan, the room has an exterior window for replacement air, and the attic provides adequate net-free exhaust ventilation.
- Minimum 20-inch vertical clearance from the ceiling to the roof rafter
- Approximately 1 sq. ft. of net-free attic vent area
- Accessible 120V power near the fan location
- 14¾-inch round ceiling opening between joists
- 16.1-inch round intake grille
- Open window positioned to promote cross ventilation
- Electrical connections performed by a licensed electrician
See the system in action
Whole house fan and EPS Focus overviews
See how Solatube whole house fans exchange warm indoor air for fresh outdoor air, then explore the room-by-room EPS Focus design.
Warranty
Solatube damper box, ducting, and fan housing are covered for 10 years. Motor and electrical components are covered for 5 years, and the remote is subject to its manufacturer's warranty. Review the complete Solatube warranty for terms, exclusions, and claim instructions.
